Product Description

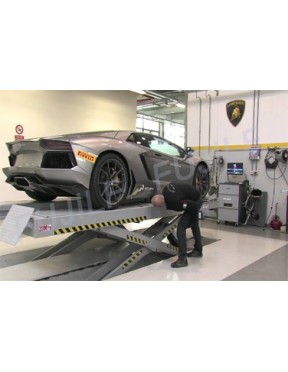

Car scissor lifting platform is a special hydraulic lifting machine to vertical transport vehicles, It is mainly used in all kinds of transportation between different floors in a building, such as building parking, auto 4s shop, etc.Especially suitable for low rise building. It is the safety and ideal Automobile transportation equipment.
Feature:
1). Heavy duty loading capacity2).High safety performance
3).Easy operation
4).It is simple apply to a variety of architectural design, it can save building space without top room location.
5 Installed in a pit/hole: when the equipment closed, it is can same level with the ground.
Scissor Hydraulic car lift platform safety precautions:
A). The lift is equipped with safety and anti-explosion device for hydraulic pipelines.B). The aluminum man lift is equipped leakage protection devices.
C). Elevating mechanism adopts high-strength manganese steel rectangular pipe.
D). Safety device to prevent the elevating platform from overloading.
E).Emergency falling device in case of power off.
|
SJG series |
Load |
Platform Size |
Lifting height |
Self-height |
Dimensions(m) |
|
SJG3-3 |
3T |
2.2*5.5M |
3M |
800mm |
2.2*5.5*1.0 |
|
SJG2-3.5 |
2T |
1.8*1.2M |
3.5M |
680mm |
1.8*1.2*0.68 |
|
SJG2-0.5 |
2T |
1.8*1.6M |
0.5M |
440m |
1.8*1.6*0.44 |
|
SJG1-6 |
1T |
1.9*1.1M |
6M |
1100mm |
1.9*1.1*1.10 |
|
SJG2-6 |
2T |
2.0*1.3M |
6M |
1200mm |
2.0*1.3*1.20 |
|
SJG1.5-0.8 |
1.5T |
2.0*1.5M |
0.8M |
500mm |
2.0*1.5*0.5 |
|
SJG1-4.3 |
1T |
2.0*1.8M |
4.3M |
800mm |
2.0*1.8*0.80 |
|
SJG2-6 |
2T |
2.0*2.0M |
6M |
1030mm |
2.0*2.0*1.03 |
|
SJG3-2.4 |
3T |
2.0*2.0M |
2.4M |
630mm |
2.0*2.0*0.63 |
|
SJG3-2.4 |
3T |
2.0*2.0M |
2.4M |
660mm |
2.0*2.0*0.66 |
|
SJG2-5 |
2T |
2.1*1.2M |
5M |
870mm |
2.1*1.2*0.87 |
|
SJG1-4.5 |
1T |
2.1*1.5M |
4.5M |
800mm |
2.1*1.5*0.80 |
|
SJG5-6.5 |
5T |
2.2*1.6M |
6.5M |
1280mm |
2.2*1.6*1.28 |
|
SJG3-6.5 |
3T |
2.2*1.9M |
6.5M |
1520mm |
2.2*1.9*1.52 |
|
SJG1.5-3.8 |
1.5T |
2.2*2.0M |
3.8M |
700mm |
2.2*2.0*0.70 |
|
SJG2-3.8 |
2T |
2.2*2.0M |
3.8M |
830mm |
2.2*2.0*0.83 |
|
SJG2-5 |
2T |
2.3*1.4M |
5M |
870mm |
2.3*1.4*0.87 |
|
SJG2-5.15 |
2T |
2.3*1.4M |
5.15M |
870mm |
2.3*1.4*0.87 |
|
SJG2-1.3 |
2T |
2.3*2.0M |
1.3M |
400mm |
2.3*2.0*0.40 |
|
|
|||||
