Dumbwaiter Lift

Dumbwaiter Lift for Food and Goods Transport Between Building Floors

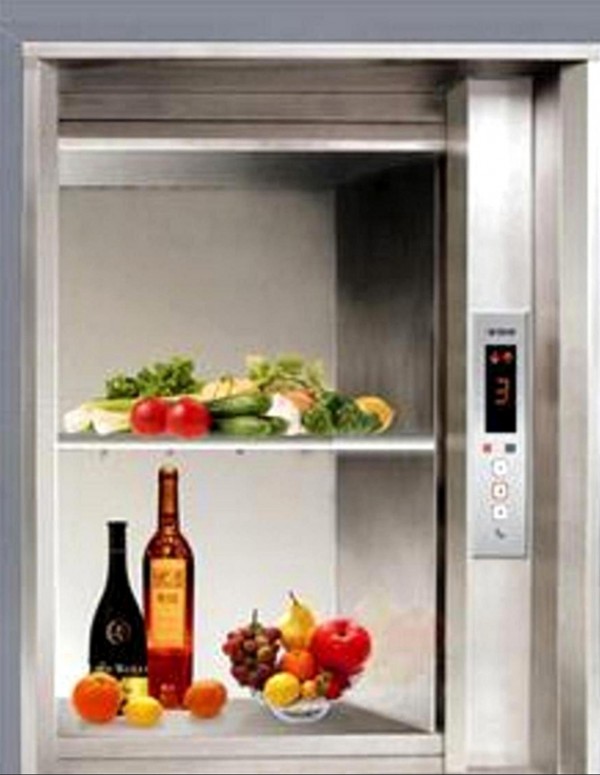

A dumbwaiter lift is a compact goods-only elevator used to move food, dishes, supplies and other materials between floors. It provides a dedicated vertical transport route for facilities that need to transfer goods between service areas without using a passenger elevator.

Fujilf dumbwaiter lifts use a microcomputer-based control system and are available with rated load capacities from 100 kg to 500 kg. The car door and landing doors can be supplied in hairline stainless steel. Single-floor and multi-floor configurations are available according to the required service arrangement and available building space.

Dumbwaiter Lift Features for Practical Daily Goods Handling

Microcomputer-based control for routine operation

The dumbwaiter lift uses a microcomputer control system designed for routine goods transport between designated landings. The control arrangement supports the daily operation of the lift within the selected project configuration.

100 kg to 500 kg load capacity range

Fujilf provides dumbwaiter lift options with general load capacities from 100 kg to 500 kg. The appropriate rated load should be selected based on the maximum weight, dimensions and handling frequency of the goods being transported.

• 100 kg capacity for lighter food, dish, document or supply transport requirements
• Higher load options for larger quantities of goods, containers or service materials
• Capacity selection based on the actual maximum load per transport cycle

Hairline stainless steel doors for service environments

The car door and landing doors are available in hairline stainless steel. This material option is suitable for environments where durable metal surfaces and regular cleaning are important considerations.

Single-floor or multi-floor service arrangement

Fujilf can configure the dumbwaiter lift for single-floor or multi-floor operation according to the building layout and material flow between work areas. The number and position of landings should be confirmed during project planning.

Dumbwaiter Lift Loading Options for Different Service Heights

The loading height of a dumbwaiter lift should match the way goods are handled at each floor. Fujilf offers two main landing-door arrangements based on the position of the opening.

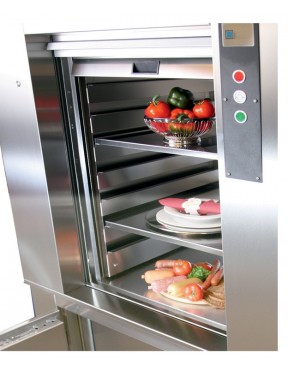

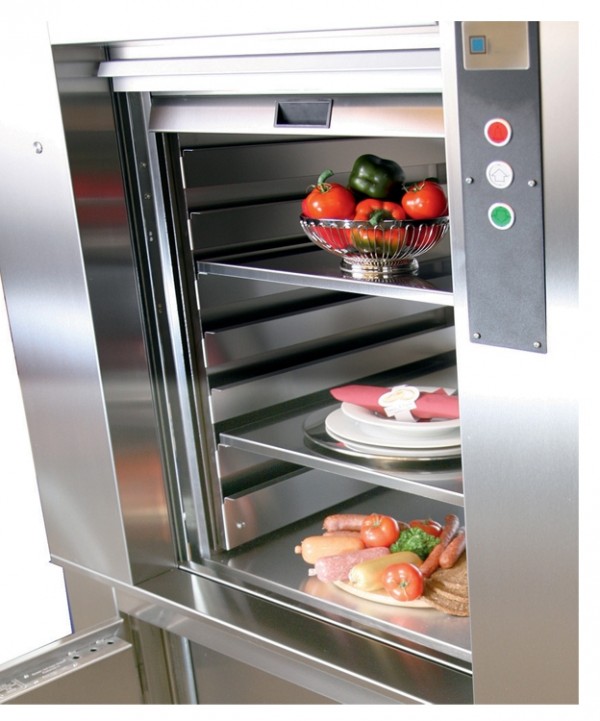

Service-level dumbwaiter lift

A service-level dumbwaiter lift is designed for direct loading and unloading at service-counter or worktop height. This arrangement can be suitable when food, dishes, trays or other goods need to be passed directly between service points.

Floor-level dumbwaiter lift

A floor-level dumbwaiter lift is arranged for loading and unloading from floor level. It can be selected for applications where goods are moved with suitable containers, carts or floor-based handling methods.

Opening arrangement based on cargo characteristics

The opening method can be selected according to the characteristics of the goods, loading direction and intended handling process. Before quotation, buyers should confirm how goods will enter and leave the car at each landing.

Dumbwaiter Lift Specifications for Initial Project Evaluation

The following specifications are based on the available product information. Final dimensions, number of stops, door size, travel height and electrical requirements should be confirmed according to the project drawing and site conditions.

Note: The final dumbwaiter lift configuration should be determined according to the maximum load, cargo dimensions, building layout, shaft conditions, local requirements and intended operating process.

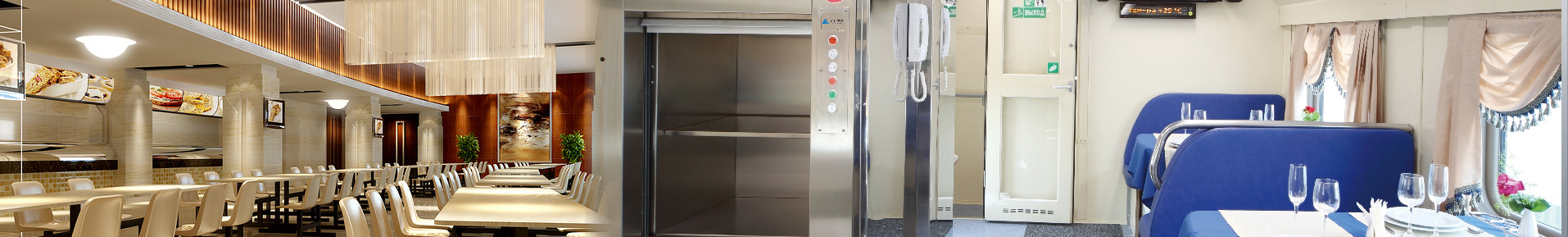

Dumbwaiter Lift Applications for Food Service and Goods Movement

A dumbwaiter lift is generally selected where a facility needs to move smaller goods vertically between fixed work areas. The final suitability of the equipment depends on the cargo type, load weight, handling process and building conditions.

• Restaurants and cafés moving dishes, food trays, ingredients or tableware between kitchens and dining floors
• Hotels transferring food-service items, linen, supplies or back-of-house materials
• Commercial kitchens connecting preparation areas, service counters and storage levels
• Hospitals, clinics or laboratories moving permitted sealed supplies, documents or internal materials
• Offices, libraries and retail facilities transferring documents, books, small parcels or packaged inventory
• Multi-level residences moving meals, groceries or household items between designated floors

Typical Dumbwaiter Lift Project for Food Service Operations

A typical food-service buyer requires a compact goods-only lift to connect a kitchen with one or more dining or service floors. The objective is to create a more organized route for food trays, dishes and service materials while reducing repeated manual carrying on stairs.

Buyer Requirement

The buyer requires a dumbwaiter lift with a suitable rated load, service-level access at selected landings and a car arrangement that fits the available shaft space. Hairline stainless steel doors are requested to suit a regularly cleaned food-service environment.

Solution

Fujilf evaluates the intended cargo, required load capacity, landing positions and handling height. Fujilf then configures the dumbwaiter lift as a service-level or floor-level system and selects an opening arrangement based on the planned loading and unloading process.

Result

The selected configuration provides a dedicated vertical route for goods between the specified work areas. Matching the landing arrangement to the service process helps the buyer plan more efficient transport of food, dishes or other materials between floors.

Dumbwaiter Lift FAQ for Project Buyers

What is a dumbwaiter lift?

A dumbwaiter lift is a small goods-only elevator used to transport food, dishes, documents, supplies and other materials between floors. A dumb waiter is not intended for passenger transport.

What load capacity does Fujilf offer?

Fujilf dumbwaiter lifts have a general rated load capacity range of 100 kg to 500 kg. The required capacity should be selected according to the maximum load and intended operating conditions.

What is the difference between service-level and floor-level loading?

Service-level loading is arranged at a counter or working height for direct transfer of goods. Floor-level loading is arranged at floor height and can be selected for goods handled from the floor or with suitable carts and containers.

Can one dumbwaiter lift serve multiple floors?

Yes. Fujilf can provide single-floor or multi-floor dumbwaiter lift configurations. The number of landings and their positions should be confirmed based on the building layout and required goods flow.

What material is used for the doors?

The car door and landing doors are made of hairline stainless steel according to the original product information.

How is the opening method selected?

The opening method is selected according to the characteristics of the cargo and the planned loading and unloading process. Buyers should provide the loading direction, cargo dimensions and landing layout for evaluation.

What information is needed for a dumbwaiter lift quotation?

Please provide the required load capacity, cargo dimensions, number of floors, travel height, shaft dimensions, landing positions, preferred service level or floor level arrangement, opening direction and destination country.

About Fujilf Dumbwaiter Lift Manufacturing

Suzhou Fujilf Elevator Co., Ltd. develops and manufactures elevator products and elevator components, including dumbwaiter lifts for goods transport applications. Fujilf was established in 2002 and later expanded into complete elevator production alongside its elevator-component manufacturing capability.

For dumbwaiter lift projects, Fujilf focuses on configuring the rated load, number of service floors, door position and loading arrangement according to the customer’s building layout and intended goods-handling process.

Request Dumbwaiter Lift Configuration and Quotation Details

To prepare a suitable dumbwaiter lift proposal, please provide the project information below. These details help Fujilf assess the appropriate capacity, loading arrangement and opening configuration for the intended application.

• Maximum load weight and the type of goods to be transported
• Cargo dimensions, including tray, box, container or cart size where applicable
• Required number of floors, travel height and landing locations
• Available shaft width, depth, headroom and pit details, if available
• Preferred service-level or floor-level loading arrangement
• Required door position and expected loading or unloading direction
• Project location and destination country
• Floor plan, shaft drawing or site photos when available

Fujilf can use the submitted project information to review the required dumbwaiter lift configuration and prepare quotation details for the intended goods-transport application.
