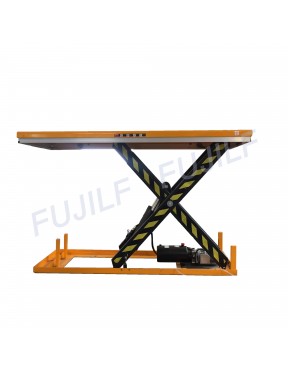

FUJILF hydraulic cargo platform lift Operation is easy. There are 2 sets control system installed on the stationary hydraulic scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered anti-slip plate
2) Support scissors: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/7.5Kw or 220v or as your request
4) Hydraulic cylinder: 110*4sets high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
Safety:
2. Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
3. Safety clearance between scissors to prevent trapping during operation.
4. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
5. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
6. Self lubricating bushings on pivot points.
7. Removable lifting eye to facilitable handling and lift table installation
Our services:
1) We can design the customerized stationary hydraulic scissor lift as per your requirement.
2) The most suitable stationary hydraulic scissor lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
|
Model |
Capacity |
Min height /Max height |
Platform (length*width) |
Base size (length*width) |
Lift time |
Voltage |
Net weight |
|
|
(Kg) |
(mm) |
(mm) |
(mm) |
(s) |
|
(Kg) |
|
SJG-HW1001 |
1000 |
205/990 |
1300×820 |
1240×787 |
20-25 |
380V/220V 50H |
160 |
|
SJG-HW1002 |
1000 |
205/990 |
1600×1000 |
1240×787 |
20-25 |
380V/220V 50H |
186 |
|
SJG-HW1003 |
1000 |
240/1300 |
1700×850 |
1615×787 |
30-35 |
380V/220V 50H |
200 |
|
SJG-HW1004 |
1000 |
240/1300 |
1700×1000 |
1615×787 |
30-35 |
380V/220V 50H |
210 |
|
SJG-HW1005 |
1000 |
240/1300 |
2000×850 |
1615×787 |
30-35 |
380V/220V 50H |
212 |
|
SJG-HW1006 |
1000 |
240/1300 |
2000×1000 |
1615×787 |
30-35 |
380V/220V 50H |
223 |
|
SJG-HW1007 |
1000 |
240/1300 |
2000×1700 |
1615×1404 |
30-40 |
380V/220V 50H |
365 |
|
SJG-HW1008 |
1000 |
240/1300 |
2000×1700 |
1615×1404 |
30-40 |
380V/220V 50H |
365 |
|
SJG-HW2001 |
2000 |
230/1000 |
1300×850 |
1220×785 |
20-25 |
380V/220V 50H |
235 |
|
SJG-HW2002 |
2000 |
230/1000 |
1600×1000 |
1220×785 |
20-25 |
380V/220V 50H |
268 |
|
SJG-HW2003 |
2000 |
250/1300 |
1700×850 |
1615×785 |
20-25 |
380V/220V 50H |
289 |
|
SJG-HW2004 |
2000 |
250/1300 |
1700×1000 |
1615×785 |
20-25 |
380V/220V 50H |
300 |
|
SJG-HW2005 |
2000 |
250/1300 |
2000×850 |
1615×785 |
20-25 |
380V/220V 50H |
300 |
|
SJG-HW2006 |
2000 |
250/1300 |
2000×1000 |
1615×785 |
20-25 |
380V/220V 50H |
315 |
|
SJG-HW2007 |
2000 |
250/1400 |
1700×1500 |
1615×1404 |
20-25 |
380V/220V 50H |
160 |
|
SJG-HW2008 |
2000 |
250/1400 |
2000×1800 |
1615×1404 |
20-25 |
380V/220V 50H |
160 |
|
SJG-HW4001 |
4000 |
240/1050 |
1700×1200 |
1600×900 |
20-25 |
380V/220V 50H |
375 |
|
SJG-HW4002 |
4000 |
240/1050 |
2000×1200 |
1600×900 |
30-40 |
380V/220V 50H |
405 |
|
SJG-HW4003 |
4000 |
300/1400 |
2000×1000 |
2000×900 |
30-40 |
380V/220V 50H |
470 |
|
SJG-HW4004 |
4000 |
300/1400 |
2000×1200 |
2000×900 |
35-40 |
380V/220V 50H |
490 |
|
SJG-HW4005 |
4000 |
300/1400 |
2200×1000 |
2000×900 |
35-40 |
380V/220V 50H |
480 |
|
SJG-HW4006 |
4000 |
300/1400 |
2200×1200 |
2000×900 |
35-40 |
380V/220V 50H |
505 |
