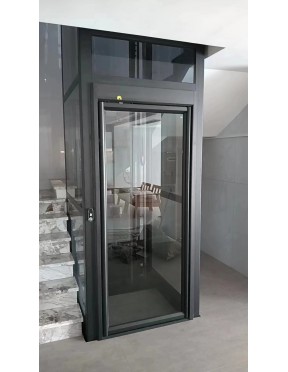

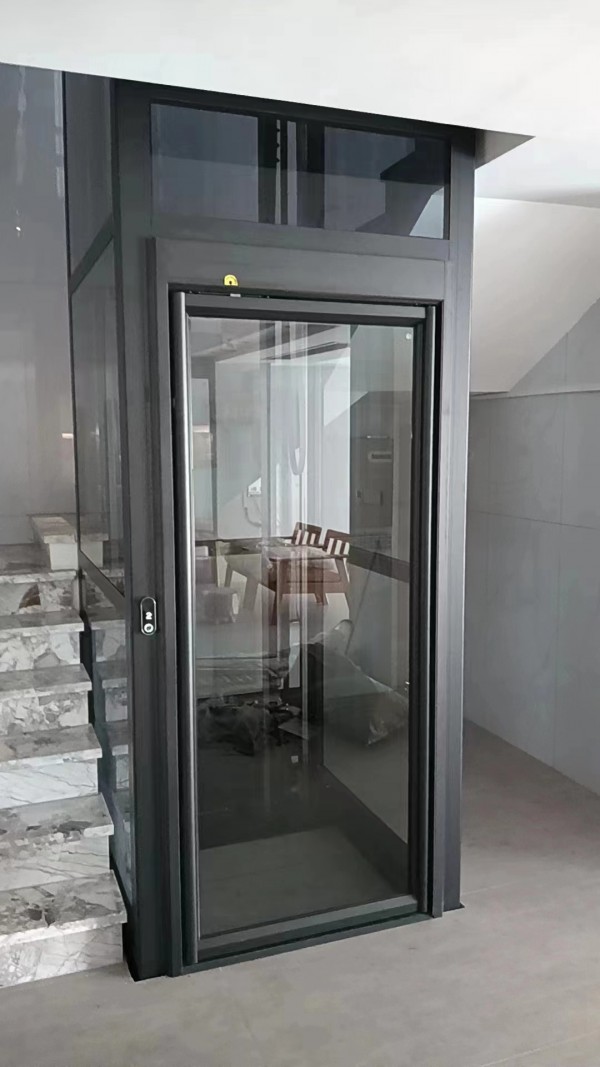

Platform homelift



Platform homelift

  • General Details
  • Specification
  • Feedback


Certified to Higher Standards.


We meet and exceed rigorous European benchmarks, including EN81, achieving CE, ISO 9001 certifications. This commitment translates into elevators renowned for their superior comfort, whisper-quiet operation, and energy savings.


Durability Meets Sustainability


FUJILF as an integrated company—from R&D to service—we control every detail. We select premium safety parts and enforce strict installation protocols to guarantee an exceptional experience.

Our commitment extends to the planet: most components are recyclable, and we use non-toxic, powder-coat finishes free from heavy metals.


A Sleek Profile, An Expansive Feel


This platform home lift features a pre-engineered panoramic shaft and a generous 2100mm high cabin. It offers flexible customization with various functional, configurational, and stylistic options to match your interior design.



Compact Size, Universal Application


With a load capacity of 400 kg and a starting platform size of 840 mm x 520 mm, this model is designed for installation in homes with 2 to 6 floors.


Zero Messy Renovations. Ultimate Flexibility.


With its self-contained shaft, it can be installed in stairwells, a corner, or through a slab—virtually anywhere with minimal disruption.


No Pit & No Machine Room Required.


Pit Requirement: 0 mm or 100 mm

Minimum Headroom (Overhead): 2500 mm




DRIVE SYSTEM AND STRUCTURAL FORM

The world's leading steel belt traction drive and counterweight system innovative backpack rack balance structure

FLOOR COVERAGE

floors 2-6

SCENES TO BE USED

Duplex/villa /townhouse/detached villa / self-built house

DOOR SYSTEM

Hand pulled door/automatic single door/automatic double door

MINIMUM HOISTWAY FRAME SIZE



950mm*950mm

(Corresponding car size: 840mm*520mm. If there are non-standard shaft dimensions, please consult the product consultant for details.)

MAXIMUM HOISTWAY FRAME SIZE



1400mm*1400mm

(Corresponding car size:1290mm*970mm. If there are non-standard shaft dimensions, please consult the product consultant for details.)

OVERHEAD HEIGHT



≥2300mm

PIT DEPTH



≥100mm

CAR SIZE CALCULATION METHOD



Car net width =hoistway frame size-110mm(non-counterweight side)

Carnet depth =hoistwayframe size-430mm(counterweight side)
