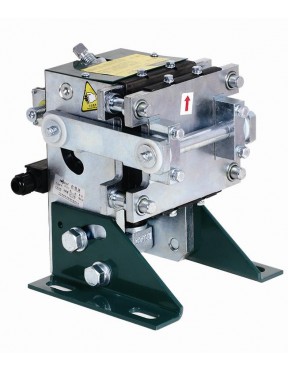

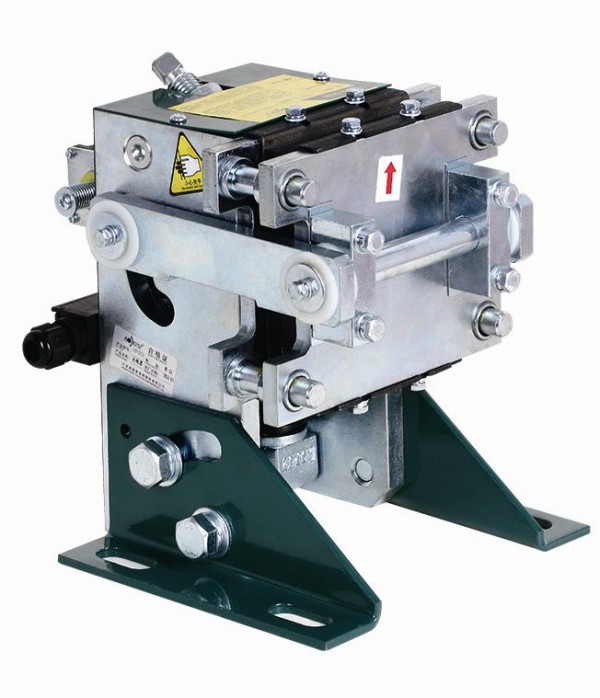

Rope Brake, Rope gripper



Rope Brake, Rope gripper

  • General Details
  • Specification
  • Feedback


Conventional clip rope combined with corresponding speed governor is used as elevator upward protection device. It mainly functions as a braking unit in the upward protection device to control car upward running over speed state by over-speed governor. Once the control speed is beyond the set speed of over-speed governor, the clip rope should be able to make the car stop or at least reduce the speed to a range within counterweight buffer permit, thus meet safety protection requirement during upward running. The clip rope functions directly on traction rope through braking friction plates, generally can be installed between the traction wheel and guide wheel or installed in lower parts of them, however firm and reliable installation should be guaranteed and necessary moving space should be ensured.

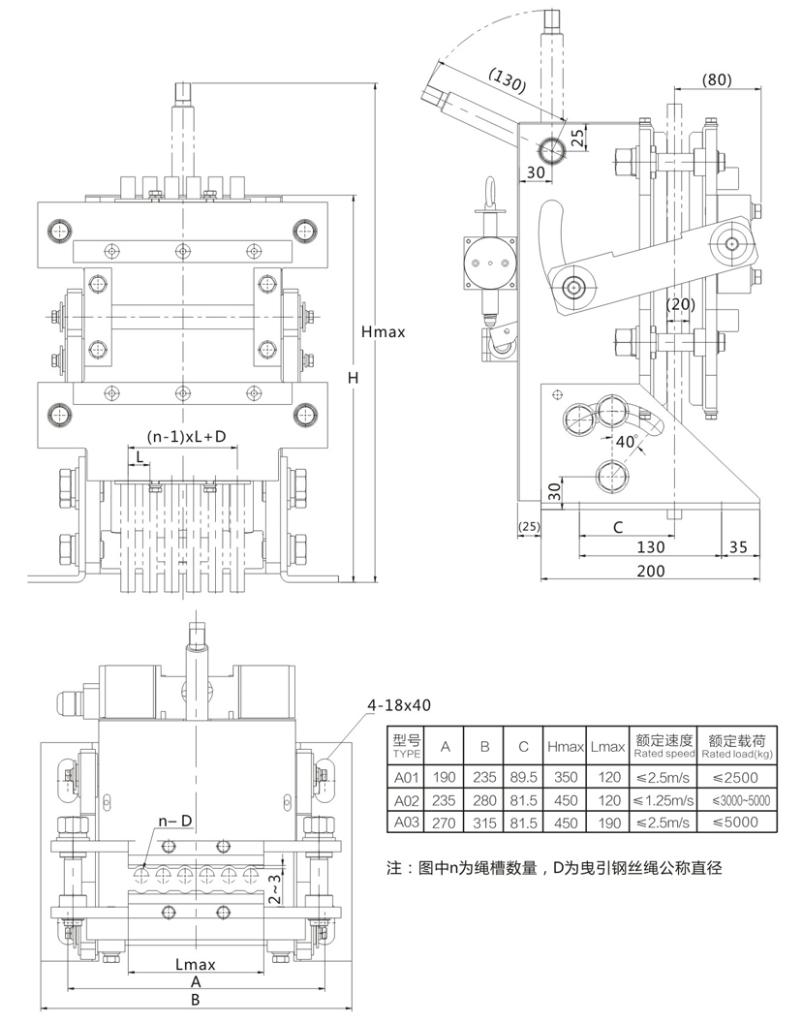

According to load capacity and its speed parameters characteristic, our clip rope device is divided into two series suitable for different elevator layouts. There are three specifications according to installation size. Pay attention to select matching parameter information: system total weight(kg), rated speed(m/s),rated load capacity(kg), traction suspension ratio and the state of traction rope(traction rope nominal diameter Фd- traction rope number n- adjacent traction rope center distance L).


Triggering mode: over-speed governor upward mechanical triggering
or electrical triggering
Reset mode: manually
Functioning postion: traction wire rope
Performance standard:GB7588-2003、 EN81-1:1998
lnstallation; upright or upside down
