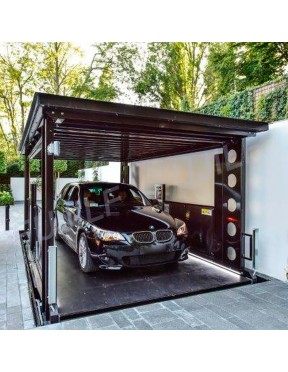

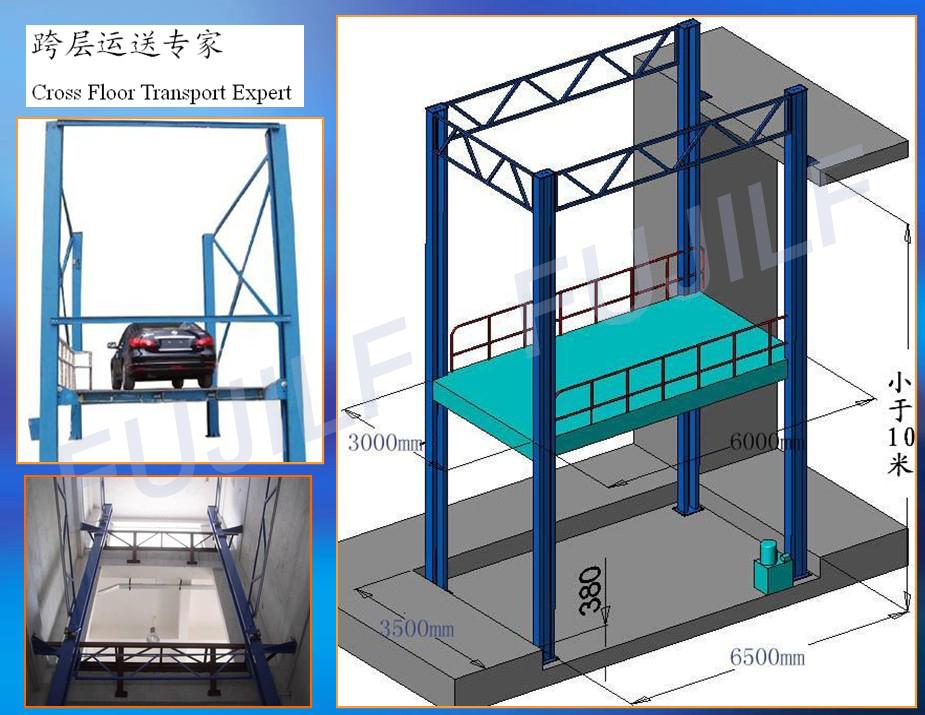

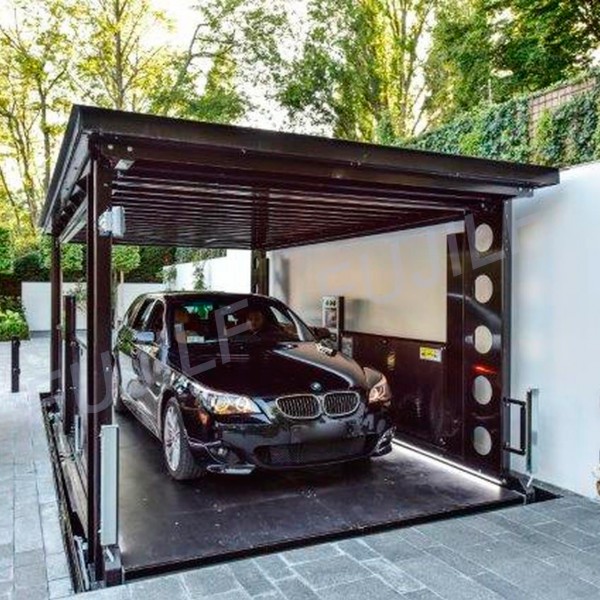

Chain Hydraulic Car lift platform

Product Description:
1.Electrical unlock, easy operation.
2. Thin course design, minimum heigSJG 155mm
3. Cylinder is inside the platform
4. Heavy duty steel wire or heavy duty chain to insure the safety
5. Courses inner distance can be adjusted to suit for different vehicle
6. Auto-insuring device to guarantee the vehicle safty when it is lift up.
7. Synchronized device on the courses to insure the vehicle no overturn possibility.
8. Before the courses drop to the ground, the alarm remind the operator for safety
9. Chain or steel wire broken protection device
10. Blasting protection device of hydraulic system
11. 24V safe operate voltage
12. Aluminium shelled motor with fan
13. Corrosion-resistance steel oil box or plastic box for the convenience to view the content and cleanness
14. Electrical, mechnical and hydraulic system are all manufactured according to Europen safety standard

Chain Hydraulic car lift platform safety precautions:
In special circumstance, the lift will use explosion-proof electric equipment
The platform is equipped with anti skid plate to prevent slipping, it is enough safe when works on the platform.
The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity ,The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position

The platform is equipped with anti skid plate to prevent slipping, it is enough safe when it works


HT series

Load

Platform Size

Lifting height

Self-height

Dimensions(m)

HT3-3

3T

2.2*5.5M

3M

800mm

2.2*5.5*1.0

HT2-3.5

2T

1.8*1.2M

3.5M

680mm

1.8*1.2*0.68

HT2-0.5

2T

1.8*1.6M

0.5M

440m

1.8*1.6*0.44

HT1-6

1T

1.9*1.1M

6M

1100mm

1.9*1.1*1.10

HT2-6

2T

2.0*1.3M

6M

1200mm

2.0*1.3*1.20

HT1.5-0.8

1.5T

2.0*1.5M

0.8M

500mm

2.0*1.5*0.5

HT1-4.3

1T

2.0*1.8M

4.3M

800mm

2.0*1.8*0.80

HT2-6

2T

2.0*2.0M

6M

1030mm

2.0*2.0*1.03

HT3-2.4

3T

2.0*2.0M

2.4M

630mm

2.0*2.0*0.63

HT3-2.4

3T

2.0*2.0M

2.4M

660mm

2.0*2.0*0.66

HT2-5

2T

2.1*1.2M

5M

870mm

2.1*1.2*0.87

HT1-4.5

1T

2.1*1.5M

4.5M

800mm

2.1*1.5*0.80

HT5-6.5

5T

2.2*1.6M

6.5M

1280mm

2.2*1.6*1.28

HT3-6.5

3T

2.2*1.9M

6.5M

1520mm

2.2*1.9*1.52

SSL1.5-3.8

1.5T

2.2*2.0M

3.8M

700mm

2.2*2.0*0.70

SSL2-3.8

2T

2.2*2.0M

3.8M

830mm

2.2*2.0*0.83

SSL2-5

2T

2.3*1.4M

5M

870mm

2.3*1.4*0.87

SSL2-5.15

2T

2.3*1.4M

5.15M

870mm

2.3*1.4*0.87

SSL2-1.3

2T

2.3*2.0M

1.3M

400mm

2.3*2.0*0.40
