Guide Rail Hydraulic Platform Lift



Guide Rail Hydraulic Platform Lift

  • General Details
  • Specification
  • Feedback
Application

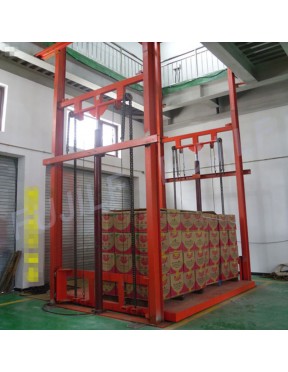

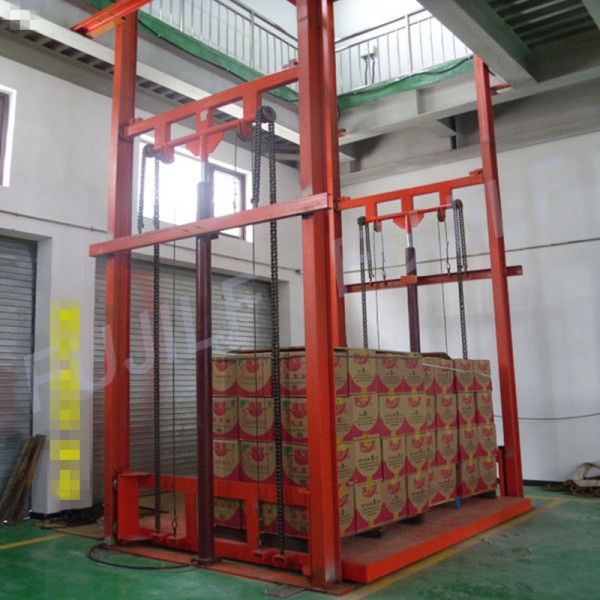

FUJILF guide rail hydraulic lift platform that used to transfer cargo between layers in workshop, restaurant and hotel. Because the lowered height of the table is only 150-200mm, it is used in the site where is no, and with 4 modes, (Single post, double posts, 4 posts), the movement is clam, the operation is simple and reliable; hydraulic and electric drive make cargo transfer more easy and economic. (Detailed capacity and travel height can be designed according to customer’s requests.)

Description

1.FUJILF guide rail hydraulic platform lift is a non-scissors-type lifting platform, for two, three industrial plants, restaurants, and transport of goods between floors.
2.As the minimum height is only 150-300mm, best adapted to not digging pit of industrial situations.
3.It have many forms (single column, double-column, four-column), smooth movement, simple operation and reliable, hydraulic, Electric multiple protection, so that transmission between floors can be economic and relaxed.
4 FUJILF lead rail platform lift made delivery heavy duty cargo more easy and convenient . multi-point control, mutual-lock between upper and nether layers, so to make a safer operation.
5.It is suitable for 2-6 layers’ steel structure workshop, and can be used inside or outside of the workshop.
6. Hydraulic cylinder as the main driving force, and through the heavy chain and wire rope to ensure the absolute running security.
7.The pit and machine room is needn't, especially suitable for the basement, warehouse renovation, new shelves.
8.With easy installation and maintenance, beautiful, safe, easy to operate.
9.This guide rail lift platform is produced according to the Physical environment of the site.
10. Electric and manual drop, emergent stop button is convenient and safe.


Safety Precautions:

1 Overfall valve: To avoid over loading when it is moving up.
2.Emergency manual valve: In case power off, the lift car may drop to the nearest layer to open the door.
3.Manual pump: When failure occur, operator may use manual pump to give high pressure oil to get to the nearest layer.
4.Pipe broken protection valve: When lifting car drops fast as oil pipe broken, use the valve can make the lift stop dropping.
5. Oil temperature protection: When temperature of oil is overheat, there is signal given out, stop the lift when temperature get normal, start again.


Our services:

1) We can design the customerized outside elevator as per your requirement.
2) The most suitable outside elevator will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.


Model

Loading Capacity

Lifting height

Min.height

Table  size

Power

SJG0.5-4.5

500kg

4500mm

150mm

2000*1500mm

2.2kw

SJG1.0-4.5

1000kg

4500mm

150mm

2000*1500mm

3kw

SJG2.0-4.5

2000kg

4500mm

150mm

2000*1500mm

3kw

SJG3.0-4.5

3000kg

4500mm

160mm

2000*1500mm

3kw

SJG0.5-7.5

500kg

7500mm

150mm

1200*1200mm

1.5kw

SJG1.0-7.5

1000kg

7500mm

150mm

1800*1400mm

2.2kw

SJG2.0-7.5

2000kg

7500mm

150mm

2000*1500mm

2.2kw

SJG3.0-7.5

3000kg

7500mm

160mm

2000*1600mm

3kw

SJG1.0-10.5

1000kg

10500mm

150mm

1800*1400mm

2.2kw

SJG1.0-14

1000kg

1400mm

150mm

1800*1500mm

2.2kw

SJG3.0-4.5

3000kg

4500mm

160mm

5000*3000mm

4kw
