FUJILF Platform Lift



FUJILF Platform Lift

  • General Details
  • Specification
  • Feedback

Description

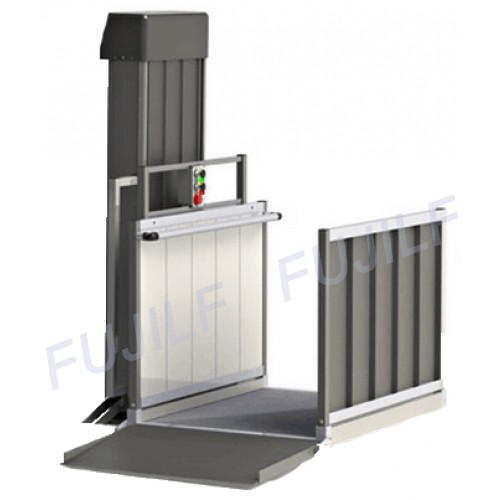

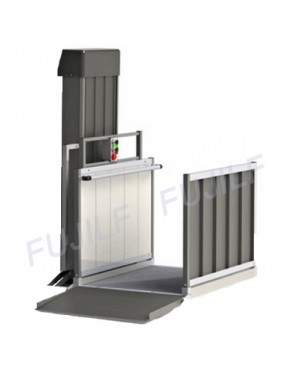

FUJILF Open Style wheelchair Platform Lifts (sometimes referred to as Steplifts) are an aesthetically pleasing and cost effective way or transporting wheelchair users or parents with pushchairs between two levels.
Capable of raising up to 3 metres and lifting 400kg, this stair lift offers the benefits of a conventional Platform Lift (no pit or lift shaft required) but with the feeling of freedom that comes with an open aspect design.

Available in a colour of your choice or in brushed stainless steel, FUJILF Open Style Vertical Platform Lifts will blend in with the environment, whether workplace or at home, office or retail.


Travel:  0-2m
Compliance:   European Machinery Directive
Speed:  0.15 m/sec
Platform size:  1100 x 1400 mm
Door type:    Manual swing doors (optional auto) Aluminium with clear infills on each level
Door configurations:  Through-car entrances
Max stops:  2
Power :  Hydraulic 220v Single Phase
Control system:  Hold to run
Environment:   Internal or external
Max load:   500 kg
Pit:     No pit
Headroom:    Minimum 2000 mm above top landing
Application:   Indoors & Outdoors
Fixing Method(s):   Floor Mounted and at Threshold

Lift options
Automatic doors
RAL colour options
External (I.P. Rating)

Warranty
12 months
Optional extended warranty available

Key advantages
No pit required
Hydraulic unit enclosed in lift frame
Attractive ergonomic design

BCA and DDA compliant
